We're so used to the idea of cars being, well, car-shaped, that we find any other body layout extraordinary. But there's no real reason why a car has to
have an engine at the front, a trunk at the back, and a passenger
compartment stuck in the middle. Nor is there any good reason why the
passenger zone—the most important part of a car for most of us—has
to take up only half the total space. Cars look the way they do
largely for historical reasons: they've always been built that way.
What if we could do away with the bulky, gasoline engine entirely and
devote more room to the passengers and their cargo? That's one of the
exciting possibilities that opens up if you use hub (in-wheel) motors
(compact electric motors built into each wheel) instead of engines. Let's take a closer
look!
Photo: The inner of a hub motor is a "brushless" motor like this made up of electromagnetic copper coils. The coils, which remain static, generate a magnetic field that makes another part of the motor (not shown here) spin around them. In other words, a hub motor is a brushless motor like this built inside the hub of a car or bicycle's wheels.
If you've read our main article on electric
motors, you'll know the basic idea of turning
stored electricity into motive power:
feed an electric current
through tightly coiled wire that sits between the poles of a magnet
and the coil spins around making a force that can turn a wheel and
drive a machine.
Most electric-powered vehicles (electric cars, electric bicycles, and
wheelchairs) use onboard batteries and a
single, fairly ordinary
electric motor to power either two or four wheels. But some of the
latest electric cars and electric bicycles work a different way.
Instead of having one motor powering all the wheels using gears
or chains, they build a motor directly into the hub of each wheel—so the motors and
wheels are one and the same thing. That's what we mean by a hub
motor.
Photo: Left: The hub motor of an electric bike.
Right: Take it apart and what you'll see is a bit like this brushless motor from a PC cooling fan.
Note the thick copper coils of wire that convert electric power from the battery into
the movement that pushes you along.
How does a hub motor differ from an ordinary motor?
Photo: One of the aluminum mesh wheels from NASA's lunar roving vehicle, an electric car used on the Moon in the early 1970s, with tires made from
zinc and steel. Though not exactly hub motors as such, each wheel was nevertheless powered by its own separate 10,000 rpm electric motor. Photo by courtesy of NASA Marshall Space Flight Center (NASA-MSFC).
The basic idea is just the same. In an ordinary motor, you have a
hollow, outer, ring-shaped permanent magnet that stays static (sometimes called the stator) and an
inner
metallic core that rotates inside it (called the rotor). The
spinning rotor has an axle running through the middle that you use to
drive a machine. But what if you hold the axle firmly so it can't rotate and
switch on the motor? Then the rotor and the stator have no choice but
to swap roles: the normally static rotor stays still while the stator
spins around it. Try it with an electric
toothbrush. Instead of
holding the plastic case of your
toothbrush (which, broadly speaking,
connects to the static part of an electric motor), try holding only the
bristles and then turn on the power. It's quite tricky to do, because
the brush moves so fast, but if you do it right you'll find the
handle slowly rocks back and forth. This is essentially what happens in a
hub motor. You connect the central, normally rotating axle to the
static frame of a bicycle or the chassis of a car. When you switch on
the power, the outer part of the motor rotates, becoming a wheel (or
wheels) that powers the vehicle forward.
How does a brushless DC (BLDC) motor work?
Photo: A small brushless DC motor taken from a computer's floppy disk drive and seen from outside (top) and inside (bottom). Bigger versions of these images are available on our
Flickr page.
Ordinary electric motors use a mechanical device called a commutator
and two contacts
called carbon brushes to reverse the electric current
periodically
and ensure the axle keeps turning in the same direction.
Hub motors are typically brushless motors (sometimes called brushless direct
current motors or BLDCs), which replace the commutator and brushes with half-a-dozen or more separate coils
and an electronic circuit. The circuit switches the power on and off
in the coils in turn creating forces in each one that make the motor
spin. Since the brushes press against the axle of a normal motor, they introduce friction, slow it down, make a certain amount of noise, and waste
energy. That's why brushless motors are often more efficient, especially at low speeds. Getting rid of the brushes also saves having to replace them every so often when friction wears them down.
Here are some photos of a typical brushless DC motor. First, look at the fully assembled motor shown in the top picture. In a normal motor, you'd expect the inner coil to rotate (it's called the rotor) and the outer magnet to stay static (that's called the stator). But in this motor, the roles are reversed: the inner part with the coils is static and the gray magnet spins around it. Now look inside and you can see exactly how it works: the electronic circuit sends power round the nine copper coils in turn, making the gray outer case (which is a magnet split into a number of sections, bent round into a circle) spin around the copper coils and circuit board (which remain static).
How does the circuit know which of the nine coils to switch on and off—and when? You can't really see in this photo, but there are several tiny magnetic field sensors
(known as Hall-effect sensors) positioned between some of the coils. As the permanent magnets on the outer rotor sweep past them, the Hall-effect sensors figure out where the north and south magnetic poles of the rotor are and which coils to activate to make it keep spinning. The trouble with this is that it means the motor does need an electronic circuit to operate it, which is something you don't need for an ordinary DC motor.
Photo: A PC fan motor (the same one shown in the photo higher up the page) is a simpler, cruder, and cheaper design than the one used in a floppy or hard disk drive: the static part has just four coils. All it has to do is blow cool air over a computer's processor chip, so there's no need to worry about position sensing and precision control; that's why there are no Hall-effect sensors on the circuit board.
Sponsored links
What are the advantages of hub motors?
It depends whether you're talking about an electric bicycle or an electric car.
Adding a hub motor and batteries to a bicycle is a mixture of pro
and con: you increase the bicycle's weight quite considerably but, in
return, you get a pleasant and effortless ride whenever you don't feel
like pedaling. Where electric cars are concerned, the benefits are
more obvious. The weight of the metal in a typical car (including the
engine, gearbox, and chassis) is perhaps 10 times the weight of its
occupants, which is one reason why cars are so very inefficient. Swap
the heavy engine and gearbox for hub motors and batteries and
you have a lighter car that uses energy far more efficiently.
Getting rid of the engine compartment also frees up a huge amount of space for passengers and their luggage—you
can just stow the batteries behind the back seat!

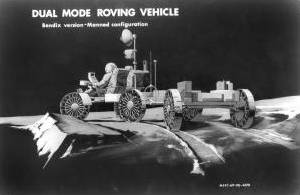

Photo: An artist's impression of the lunar roving vehicle sketched out in 1969. The emphasis was on making a fold-up vehicle light enough to take to the Moon. Electric power was not only a practical choice: with no air in space to power an internal combustion engine, it was the only real option. Photo by courtesy of NASA Marshall Space Flight Center (NASA-MSFC),
and Internet Archive, with yellow highlights added to the wheels.
Vehicles powered by hub motors are a whole lot simpler (mechanically less complex) than normal
ones. Suppose you want to reverse. Instead of using elaborate arrangements of gears, all you
have to do is reverse the electric current. The motor spins backward
and back you go! What about four wheel drive? That's quite an
expensive option on a lot of vehicles—you need more gears and
complicated driveshafts—but it's very easy to sort out with hub
motors. If you have a hub motor in each of a car's four wheels, you
get four-wheel drive automatically. In theory, it's easy enough to make the four motors turn at slightly different
speeds (to help with cornering and steering) or torque (to move you through muddy or uneven terrain).
What are the problems with hub motors?
Handling
Hub motors are bigger, bulkier, and heavier than ordinary wheels and change the handling
of an electric car or bike: they increase the
unsprung mass (the mass not supported by the suspension), theoretically giving more shock and vibration, poorer handling, and a bumpier ride.
That's the common wisdom, anyway. In practice, engineers have found that vehicles with hub motors simply need to have their suspension "tweaked" to compensate for the extra unsprung mass, and this can even lead to an overall improvement in handling.
Safety
The sudden failure of a single hub motor could cause a vehicle to slew to one side, which is why practical hub motors are
sometimes made up of several (typically four) independent sub motors, each producing a fraction (a quarter) of the overall torque. That's a much safer design, but it does add to cost and complexity. Even so, the two or four motors in hub-motor electric cars still have to be synchronized so that any major failure in one motor can be compensated for in one or more of the motors on the opposite side.
Mechanical stress
Unlike a conventional engine or electric motor, high off the road and cosily sheltered inside the engine compartment, hub motors
have to survive in a much more extreme environment. As we've just noted, they're unsprung, so they're subject
to huge amounts of vibration, and they also have to survive high-speed impacts from rocks and stones. Down by the road, they have to cope with huge extremes of temperature (freezing cold from the outside air, boiling hot from sudden braking), and getting completely submerged in water or snow. Can hub motors last as long as traditional engines or electric cars with a single, central motor?
Compatibility
Isolated hub motors are something of a futuristic ideal. For the time being, hub motors are more likely to be retro-fitted
to existing cars, so they have to work with existing friction brakes, suspension systems, and so on. That can mean
design compromises that undermine some of the advantages of using hub motors in the first place.
Torque
Another problem is delivering just the right amount of torque (turning force). A gasoline engine works best turning over quickly (making lots of revolutions per minute), no matter what speed you're actually doing on the road. You use a
gearbox to convert the engine's high revs into high
torque (and low speed) or high speed (and low torque) depending on whether you're starting off from a standstill, racing along the freeway, driving slowly uphill, or whatever. Hub motors have to be able to produce any combination of speed and torque
without a gearbox; they usually work by "direct drive." But there's a snag: in electric bikes, they sit inside the hub, at the very center of a relatively large, spoked wheel. If you turn the center of a wheel, its diameter works as a lever, multiplying the speed at the rim but reducing the torque by the same amount
(see our article on how wheels work for an explanation).
To get enough torque, you need quite a powerful motor—but not so powerful that it accelerates
you too quickly and jerkily or snaps your spokes!
Artwork: Using internal gears to increase torque in an electric bike hub motor. In this design, you can see the brushless motor on the left, with its coils (red) and the magnets (blue) that spin around them. The motor powers the main bike axle (light blue) through one or more gears (yellow) and is controlled by an electronic circuit board (green). All these components are picked inside the hub (the outer limits of which are shown by the largest blue circle) and you can clearly see where the spokes attach to the rim. Artwork from US Patent 6,321,863: Hub motor for a wheeled vehicle by Chandu R. Vanjani, Mac Brushless Motor Company, 27 November 2001, courtesy of US Patent and Trademark Office (with colors added to the original for clarity).
Hub motors typically achieve more torque by increasing the hub size quite significantly (a bigger stator and rotor make more torque than smaller ones); you can see from the electric bike photo up above that
the powered hub in an electric bike is considerably bigger than the unpowered hub in an ordinary bike.
Some hub motors boost their torque with internal gearboxes (typically an arrangement of planetary (epicyclic) gears in between the stator and the rotor), but since that adds weight, cost, mechanical complexity, and potential unreliability, many do not. Bigger torque brings an added problem: you need to be sure the rest of your wheel is strong enough to cope with the twisting forces a hub motor can deliver, particularly if you're converting something like an ordinary bicycle wheel into a powered wheel. The spokes on an electric bike are shorter and leave the hub at a tighter angle, which can stress them further. Suppose you mount an electric motor on the hub of a basic bike and switch on the power. Since you weigh quite a lot and there's plenty of friction between the tire
and the ground, the motor could simply bend the spokes instead of moving you along the ground! So an electric
bicycle typically needs stronger wheels (perhaps with stronger and more elastic spokes, different positioning of spoke holes, a thicker rim, or some other fix) than an ordinary one.
Artwork: Above and below, a hub motor from a Razor electric scooter that uses planetary gearing to increase torque. Above, a plan view of the gears (red/blue) and motor/drive axle (green); below, an exploded view of the same motor. Artwork from US Patent 10,897,181B2: Hub motor arrangement or vehicle with hub motor arrangement by Joey Chih-Wei Huang, assigned to Razor USA LLC, 19 January 2011, courtesy of US Patent & Trademark Office.
A brief history of hub motors
1883: Wellington Adams of St Louis, Missouri files the first patent for an electric hub motor, which he suggests
will prove useful for the "propulsion of railroad-cars and to the operation of light machinery of
various kinds—for instance, sewing machines and dental instruments."
1895: Ogden Bolton of Ohio patents an electric bicycle with a front-wheel hub motor.
1900: Professor Ferdinand Porsche develops the Lohner Porsche, the world's first hybrid electric car, with a hub motor in each of the front wheels. Each motor produces 2kW of power (2.7 horsepower).
1947: James J. Tooley patents an airplane landing wheel incorporating a hub motor.
1962: T.G. Wilson of Duke University and P.H. Trickey of Wright Machinery Co. unveil what they describe as a
DC Machine with Solid-State Commutation (in other words, a motor with an electronic instead of mechanical commutator). This is
the first brushless DC motor.
1971 and 1972: The Apollo Lunar Rover, the first electric car in space, drives across the Moon.
Although not a hub motor vehicle, it popularizes the idea of vehicles whose four wheels are driven by independent motors.
